The Scan2PDF procedure allows the user to make some changes to the runtime settings and to see what settings are active.





PDF Filename

This value will default to a combination of the filename and path set in the template options.  The user can change it with the file dialog button.

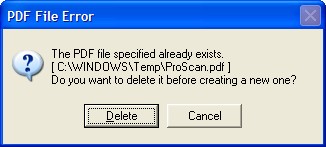

Note:  If the file exists, the user will see this dialog:





This allows them to delete the PDF and create a replacement of the same name.



Scanner Source

This field will display the name of the current scanner source selected for the Scan2PDF feature.



PDF Compression

This field will display the descriptive name of the level of PDF compression selected for the Scan2PDF feature.



View PDF file after creation

If selected, the Scan2PDF feature will use ShellExecute to launch the PDF file with the default viewer as specified on the system where the program is running.



Close this window when the scan is completed

If selected, the window will automatically close when the scan has completed.



Cancel

Cancels the scan and closes the window



Start Scan

Starts the actual scan (or opens the scanner interface if the TWAIN source is selected).  Then when the scan is completed the PDF is automatically created in the location specified and with the compression level selected.



Note that this is a similar to a function in ProImage that allows you to Scan2PDF using the scanner interface, but being able to use the scanner profiles in the ProScan version gives you more flexibility.





The Pulldown Menu Options are covered here.
